45*45mm 4.2A Type a and Type C USB charger socket

USB Characteristic:Serial No.ParameterDescription1Panel MaterialPC 94-V02Inside materialTin phosphorous bronze3Surface finishGlossy4USB DC output4.2A/5V5Output voltage tolerance±5%6Output powerMax.21W7Service life in hours3000h 21W8Efficiency78%9No-load power consumptionMax 0.2W10Input voltage100~240v/AC 50~60Hz

Featured Products

USB Characteristic:
Serial No.ParameterDescription
1Panel MaterialPC 94-V0
2Inside materialTin phosphorous bronze
3Surface finishGlossy
4USB DC output4.2A/5V
5Output voltage tolerance±5%
6Output powerMax.21W
7Service life in hours3000h 21W
9No-load power consumptionMax 0.2W
10Input voltage100~240v/AC 50~60Hz
11ColorWhite RAL9003 Black
12Number of terminals2 screw terminals
13Electrical insulation classClass II
14IK degree of protectionIK04
15IP degree of protectionIP21

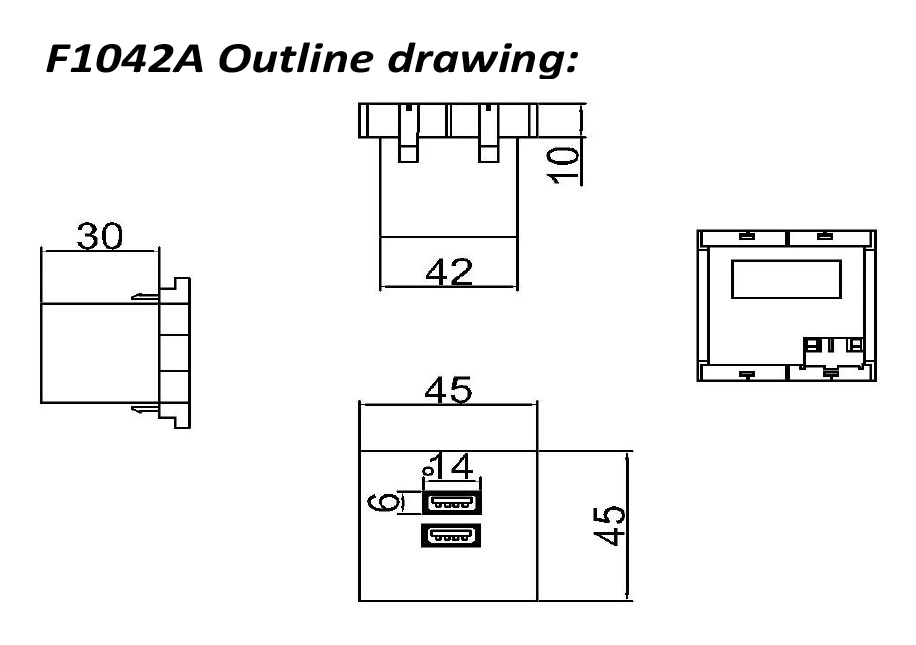

16Dimension of product45*45mm

Environmental requirements
Serial No.ParameterDescription
1Operating temperature-10ºC~+40ºC;Operating
2humidity20%~90% RH
3Storage temperature-20ºC~+85ºC;storage
4humidity10%~95% RH
5Resistance to pressure≥3Kv/AC 1min
6Isolation resistance500v DC/100MΩ

45*45mm 4.2A Type a and Type C USB Charger Socket
Feature :
45*45mm 4.2A Type a and Type C USB Charger Socket
1).Dual port USB charger of 4.2A 5VDC;
2). Protection type: Short time short-circuit protection;
3).With identifying chip: can automatically recognize different mobiles and suit its request charging AMP to meet the charging speed;
4) Product be certificated by CE,IEC60950 FOR LVD and IEC55024,IEC61000 for EMC;
5). All materials be ROHS directive tested
Testing ItemTesting StandardTesting Data
Aging testUSB charger for 2 hours with LED lights must always light2 hours
 High and low pressure 90V-264V to normal operation90V-264V normal
Power testRated output voltage range: no-load: 5V±5%, load:5V±5%No-load: 4.92-4.95V, load: 5.04-5.1
 Rated output current5.0V
 Output ripple: load 1A/2.1A, Vpp<200mV117mV-146mV
 Short circuit protection: output positive and negative short for 2 minutes, after the break to work properly2 minutes
 Pin output voltage: D-: 2.75VDC/D+:2VDC, subject to actual test valueD-:2.77V/D+:2.763V
Pressure testUnder normal climatic conditions, the input and output terminals should withstand the corresponding voltage(USB-10, 101 series for the 1500V, the other is more than 3000V), Generally every test a minute without breakdown flashing phenomenon was qualified, and leakage≤5mA.3000V
Insulation resistance testIn the normal temperature environment, AC input plug and DC input plug between the input DC500V, 1 minute after the insulation resistance of 7 trillion or more
Grounding resistanceIn any case the resistance shall not exceed 100mΩ
Temperature rise testAt room temperature 30ºCrated work, the charger rated for 2 h after the measurement of its shell surface temperature change <1ºC/ h that the temperature is stable, this time measuring the surface temperature of its shell <50ºCPass
Limit loadTest the product load current limit can run the load valuepass

Package:10 Pcs inner box into a master carton.Poly bag with box packing.
45*45mm 4.2A Type a and Type C USB Charger Socket
45*45mm 4.2A Type a and Type C USB Charger Socket

45*45mm 4.2A Type a and Type C USB Charger SocketSafety Warning:
1.For indoor use only.
2.This product must be installed/wired by a qualified electrician.

1.Protect children from touch skirt of USB port.
2.Ensure current and voltage as rating current/voltage .Do not overload
3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
